SKU: 120-16567-RD | UPC: 889545104042

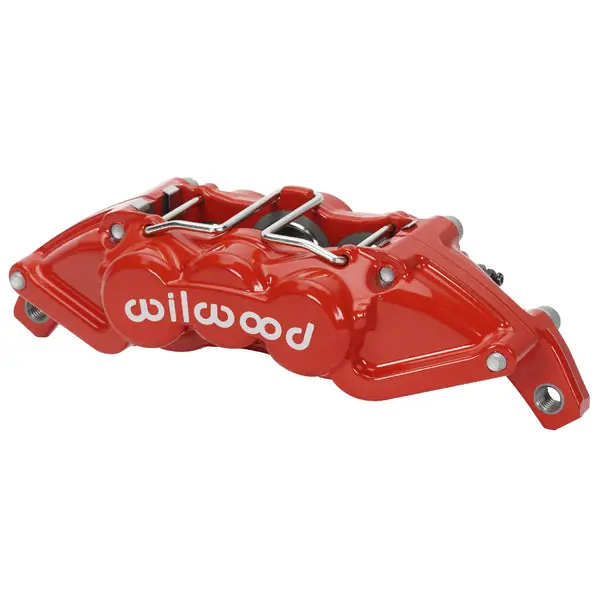

Wilwood UTV6-C/H 6-Piston Left-Hand Caliper – Red for Custom & Race Applications
The Wilwood 120-16567-RD UTV6-C/H 6-piston forged billet caliper delivers championship-level braking performance for custom UTV, sand car, and race vehicle front or rear axle applications, featuring a red anodized finish, stainless steel pistons, and high-temperature seals that withstand extreme heat while providing massive clamping force with 1.25″, 1.00″, and 0.81″ staggered bore sizes for perfect brake bias and pedal modulation.
Designed for 11.75″–14.00″ diameter rotors up to 1.25″ thick with 8 x 7.00″ bolt circle mounting, this left-hand caliper includes internal fluid crossover and bleed screws for easy plumbing and bleeding. The forged Dynalite bridge construction with Wilwood’s signature red finish resists flex and corrosion while the Type III hard-anodized piston bores ensure lifelong durability in the harshest off-road environments.
For builders demanding the ultimate 6-piston caliper with race-proven performance and aggressive red styling, the Wilwood UTV6-C/H is the gold-standard trusted on Ultra4, Baja, and short-course championship vehicles worldwide.
Key Features
- Forged billet Dynalite 6-piston construction
- Red Type III hard-anodized finish
- Staggered 1.25″/1.00″/0.81″ stainless pistons
- High-temp seals & internal crossover
- Fits 11.75″–14.00″ rotors up to 1.25″ thick
- 8 x 7.00″ bolt circle universal mounting
Product Notes
- Left-hand caliper only, right-hand is 120-16568-RD
- Requires custom bracketry for most applications
- Professional installation & bleeding required
California Proposition 65: Contains chemicals known to the State of California to cause cancer or reproductive harm.
Warranty: Limited lifetime against manufacturing defects to original purchaser.
Installation Notes
- Professional fabrication & installation required
- Fabricate custom caliper brackets
- Use Wilwood Hi-Temp brake fluid
- Bleed system thoroughly
This Part Fits
| Application | Position |
|---|---|
| Universal UTV / Sand Car / Race | Left Hand |
Note: Universal fit – custom bracketry required.
What’s Included in the Purchase
- (1) UTV6-C/H 6-Piston Caliper – Red
- Bleeds & Crossover Tube
- Part Number: Wilwood 120-16567-RD
Why Choose Wilwood?
- Over 40 years of championship-winning brake engineering
- Trusted in Ultra4, SCORE, and short-course racing
- Limited lifetime warranty
Frequently Asked Questions
- Q: Includes bracket?
A: No, universal caliper, bracket sold separately - Q: Right-hand available?
A: Yes, 120-16568-RD - Q: Pads included?
A: No, choose BP-series compound separately
Shipping & Handling
- Method: UPS or Fed Ex Ground.
- Availability: Typically ships same day or next if in stock.
- Packaging: Protective retail box.
