SKU: HFX1-2Z20-SB

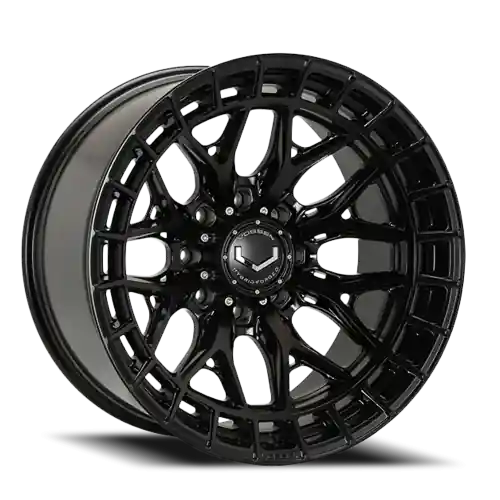

Vossen HFX-1 22×10 / 8×180 / ET+18 / Super Deep / 124.3 CB – Satin Black Wheel for 2019-2025 Mercedes-Benz Sprinter 2500/3500
The Vossen HFX-1 22×10 Satin Black Wheel delivers a super deep concave profile for Mercedes-Benz Sprinter 2500 and 3500 series from 2019 to 2025. This hybrid forged wheel weighs 37.5 lbs reducing unsprung mass for better handling and fuel efficiency on cargo vans and chassis cabs. Its precise 8×180 bolt pattern ET+18 offset and 124.3 mm center bore ensure flush fitment with hub centric rings.
Key Features
- Hybrid Forged Construction: Combines pressure casting and flow forming for 20% lighter weight than cast wheels at 37.5 lbs with increased tensile strength for heavy loads.
- Super Deep Concave Face: Provides tucked aggressive stance tucking behind fenders on Sprinter 2500/3500 while maximizing brake clearance up to 15.5 inch rotors.
- Satin Black Finish: Multi-layer coating resists road salt brake dust and UV fading for enduring sleek appearance.
- Exact Specifications: 22×10 inch size 8×180 PCD +18 mm offset 124.3 mm CB M14x1.5 lug fit designed for 2019+ Sprinter vans.
- Lifetime Structural Warranty: Covers defects in material and workmanship with Vossen authenticity sticker included per wheel.
Product Notes
- Hub centric rings required to adapt 124.3 mm bore to OEM 84.1 mm hubs on Sprinter.
- Clean with pH neutral soap and microfiber cloth dry immediately to maintain finish.
- Ships as single wheel includes center cap mounting hardware and authenticity sticker.
Installation Notes
- Professional installation recommended.
- Torque lug nuts to 118 ft-lbs in star pattern after 50-100 miles.
- Uses OEM M14x1.5 lug nuts conical seat compatible no spacers needed on most models.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019-2025 | Mercedes-Benz | Sprinter 2500 | Cargo Van |
| 2019-2025 | Mercedes-Benz | Sprinter 2500 | Passenger Van |
| 2019-2025 | Mercedes-Benz | Sprinter 3500 | Cargo Van |
| 2019-2025 | Mercedes-Benz | Sprinter 3500 | Passenger Van |
| 2019-2025 | Mercedes-Benz | Sprinter 3500XD | Cargo Van |
| 2019-2025 | Mercedes-Benz | Sprinter 4500 | Cargo Van |
| 2019-2025 | Mercedes-Benz | Sprinter 4500XD | Cargo Van |
Why Choose Vossen?
- Leads custom wheel market with designs on vehicles worldwide.
- Hybrid forged process delivers real-world strength for daily driven trucks.
- Engineered in USA with global testing for precise OEM fitment.
Frequently Asked Questions
- Q: Does this fit 2022 Mercedes Sprinter 2500 Cargo Van 170 WB RWD?
A: Yes bolts directly to 8×180 hubs uses 124.3 to 84.1 mm rings tire sizes up to 285/45R22 recommended. - Q: What construction and finish details?
A: A356 aluminum alloy hybrid forged with heat treated satin black powder coat over primer resists 1000+ hours salt spray testing. - Q: What warranty and installation support?
A: Lifetime structural warranty on manufacturing defects includes logo center cap Vossen provides fitment guides online.
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock – ships same or next business day
- Packaging: Protective cardboard box 25 x 23 x 13 inches
- Weight: 37.5 lbs product 48 lbs shipping
