SKU: TS-1-7675C-T4096E | UPC: 9329677029215

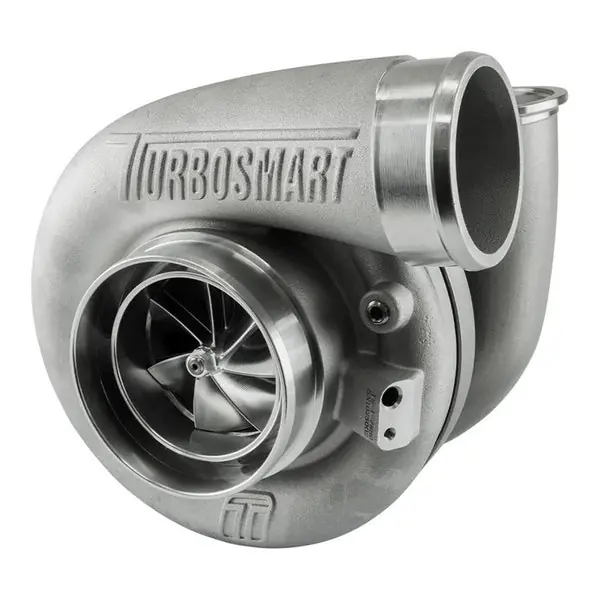

Turbosmart TS-1 Oil Cooled 7675 Turbocharger T4 Divided Inlet V-Band Outlet A/R 0.96 External WG Fits 2JZ RB26 LS V8
The Turbosmart TS-1 7675 turbocharger builds 900-1400+ HP with fast spool in a compact oil-cooled package for street and race cars. It fits universal T4 divided manifold setups on Toyota 2JZ-GTE Supra Aristo Nissan RB26DETT GT-R R32 R33 R34 SR20DET Silvia 180SX and GM LS V8 engines. T4 divided inlet A/R 0.96 housing pairs with twin-scroll manifolds for quick response and massive top-end power.
Key Features
- 76mm Compressor Wheel: Billet 11-blade Gen2 design delivers fast spool and high flow up to 1400+ HP.
- 75mm Inconel Turbine Wheel: Lightweight high-temperature material reduces inertia for instant response.
- Oil-Cooled Bearing System: Integrated oil feed drain with optional water ports handles extreme duty cycles.
- T4 Divided Inlet Flange A/R 0.96: Optimized for twin-scroll manifolds in performance engines.
- V-Band Outlet External WG: 4-inch V-band discharge pre-machined for 44mm 45mm 50mm wastegates easy install.
Product Notes
- Part number TS-1-7675C-T4096E T4 divided V-band 0.96 A/R external WG includes V-band clamp 90-degree oil drain fitting.
- Compressor housing 4.0-inch inlet 3.0-inch outlet total weight 9.5 kg 21 lbs 5-year warranty.
- Wastegate manifold downpipe not included oil-cooled primary water cooling optional.
Installation Notes
- Professional installation and tuning mandatory.
- Requires custom oil feed drain lines manifold downpipe fabrication typical time 8-12 hours.
- High-quality synthetic oil proper warm-up cool-down procedures essential for longevity.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989-2002 | Toyota | Supra | MKIV 2JZ-GTE |
| 1991-2005 | Toyota | Aristo | 2JZ-GTE |
| 1989-1994 | Nissan | Skyline | GT-R R32 RB26DETT |
| 1995-1999 | Nissan | Skyline | GT-R R33 RB26DETT |
| 1999-2002 | Nissan | Skyline | GT-R R34 RB26DETT |
| 1997+ | GM | Various | LS V8 Drift Race |
| 1989-2002 | Nissan | Silvia 180SX | SR20DET CA18DET |
| Universal | – | – | T4 Divided Manifold |
Why Choose Turbosmart?
- Australian manufacturer with decades of motorsport wins in drag drift time attack.
- TS-1 series packs fast spool power in lightweight 9.5 kg design for 1000-2000+ HP builds.
- Trusted by pro tuners worldwide ISO 9001 standards ensure reliability.
Frequently Asked Questions
- Q: Fits Toyota 2JZ-GTE Supra or Nissan RB26 GT-R?
A: Yes universal T4 divided inlet works on Supra MKIV Aristo Skyline R32 R33 R34 with twin-scroll manifold. - Q: Turbine wheel material and compressor specs?
A: 75mm Inconel turbine lightweight heat-resistant 76mm billet 11-blade Gen2 compressor 4-inch inlet 3-inch outlet. - Q: Warranty and boost capability?
A: 5-year warranty safe to 50+ psi with proper tuning supporting mods professional install.
Shipping & Handling
- Method: Standard ground shipping large box
- Availability: In stock – ships same or next business day
- Packaging: Box dimensions approx 16 x 16 x 14 inches
- Weight: Package 28-32 lbs product 9.5 kg 21 lbs
