SKU: TS-1-8280C-VB096E | UPC: 9329677031416

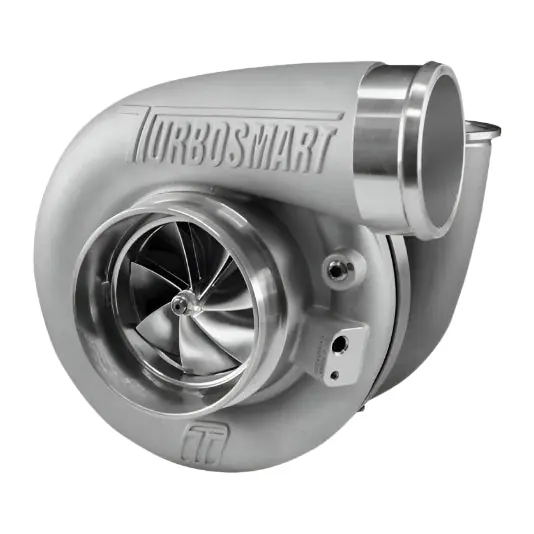

Turbosmart 8280 V-Band 0.96AR External Wastegate TS-1 Turbocharger
This Turbosmart TS-1 8280 turbocharger delivers 900-1400 horsepower for high performance engines in drag racing and motorsport builds. The universal design fits custom setups with V-band housings for fast changes and a ported shroud optimized for external wastegates. Dual ball bearings ensure quick spool and reliability under extreme conditions.
Key Features
- Dual Ceramic Ball Bearings: Reduces friction for faster spool-up and supports high shaft speeds over 200000 RPM
- Billet Compressor Wheel: 82mm inducer 80.1mm exducer with 86 trim and 0.82 A/R housing moves massive airflow efficiently
- Inconel Turbine Wheel: 80mm inducer 73mm exducer with 83 trim withstands 1700-degree exhaust temperatures
- V-Band Housings: Turbine inlet outlet and compressor inlet outlet use clamps for leak-free assembly and easy maintenance
- Ported 0.96 A/R Turbine Housing: External wastegate design prevents turbine over-speed for precise boost control
Product Notes
- External wastegate actuator and dump pipe required sold separately
- Oil and water lines must match -4AN feed M12x1.5 o-ring and M14x1.5 ports
- VSR balanced assembly includes all required clamps and hardware
Installation Notes
- Professional installation recommended.
- Custom exhaust manifold and downpipe fabrication required for universal fit
- Water cooling recommended for longevity connects to factory turbo lines
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Universal | Custom High HP Builds | 900-1400HP Engines |
| 1993-1998 | Toyota | Supra | 2JZ-GTE Custom |
| 1989-1998 | Nissan | Skyline R32-R34 | RB26DETT Custom |
| 1997-2004 | Chevrolet | Corvette C5 | LS1 Custom |
Why Choose Turbosmart?
- Motorsport heritage in World Time Attack and drag racing victories
- Investment cast 347 stainless steel housings resist corrosion and heat
- Factory VSR balanced to rigid standards for zero vibration
Frequently Asked Questions
- Q: Is this turbo direct bolt-on for any vehicle?
A: Universal design requires custom manifold but fits engines like 2JZ RB26 and LS for 900+ HP setups - Q: What materials are used in construction?
A: Billet aluminum compressor extended tips forged milled Inconel turbine and 347SS housings built for endurance - Q: What warranty coverage applies?
A: Limited lifetime warranty on CHRA with proper installation and maintenance registration required
Shipping & Handling
- Method: Ground Shipping
- Availability: In stock – ships same or next business day
- Packaging: Original Turbosmart box 19.1 x 17.1 x 17.1 inches
- Weight: 24.91 lbs
