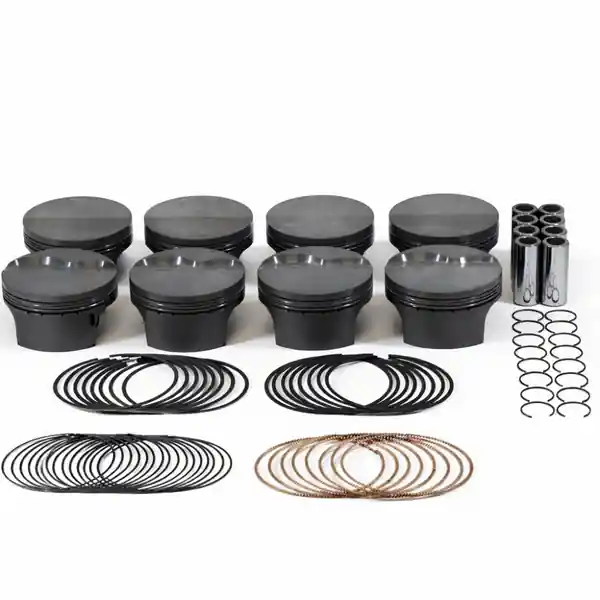

Mahle MS Piston Set GM LSX 416cid 4.070×1.110RCH 4.000 Stk 6.125 Rod .927 Pin -5.8cc 11.1CR Set of 8

SKU: 930227570

Mahle MS Piston Set 1997-2013 GM LSX Corvette Camaro GTO Silverado 416cid 4.070×1.110RCH 4.000 Stk 6.125 Rod .927 Pin -5.8cc 11.1CR Set of 8

This Mahle MS forged piston set creates 416ci displacement in GM LS engines using 4.070 inch bore 4.000 inch stroke crankshaft and 6.125 inch connecting rods. It fits 1997-2013 Corvette LS1 LS2 LS3 Camaro Z28 GTO and Silverado LQ4 LQ9 for high performance stroker builds in racing or street applications. These pistons provide reliable power with -5.8cc dish volume for 11.1:1 compression ratio using 64cc or 70cc LS cylinder heads.

Key Features

• Forged 2618-T61 Alloy: High strength lightweight design withstands extreme boost nitrous and high RPM in boosted or naturally aspirated LS engines
• 4.070 Inch Bore: Exact sizing fits LS blocks prepared with boring and honing for 416ci stroker assemblies
• 1.110 Inch Compression Height: Perfect match for 6.125 inch rods and 4.000 inch stroke cranks achieves zero deck clearance in LS1 LS2 LS3 blocks
• .927 Inch Wrist Pin: Full floating pins with Spiralock inserts ensure compatibility and strength with H-beam or I-beam connecting rods
• -5.8cc Dish Top: Precise volume sets 11.1:1 compression ratio with common LS heads works with pump gas or race fuel

Product Notes

• Requires separate file-fit piston rings Mahle MS series recommended
• Pistons ship raw for custom sizing and balancing during engine assembly
• Set includes 8 pistons .927 wrist pins and spiro-locks

Installation Notes

• Professional installation recommended.
• Bore block to 4.070 inch with deck clearance for 1.110 compression height pistons
• Compatible with 6.125 inch rods and 4.000 inch cranks apply moly assembly lube on pins

This Part Fits

Year	Make	Model	Submodel
1997-2004	Chevrolet	Corvette	Base LS1
1998-2002	Chevrolet	Camaro	Z28 LS1
2004-2006	Chevrolet	Corvette	Base LS6
2005-2007	Chevrolet	Corvette	Base LS2
2008-2013	Chevrolet	Corvette	Base LS3
2004-2007	Pontiac	GTO	Base LS1 LS2
1999-2007	Chevrolet	Silverado 1500	6.0L LQ4 LQ9

Why Choose Mahle?

• Global leader supplies OEM pistons for GM high performance engines
• Racing proven in NHRA drag radial and LS engine swaps
• Exact tolerances from CNC machining ensure ring seal and longevity

Frequently Asked Questions

• Q: Will these pistons fit a stock LS1 block?
  A: Block requires boring to 4.070 inch and honing for stroker clearance with 4.000 stroke crank
• Q: What material are these pistons made from?
  A: Forged 2618-T61 aluminum alloy with 4032 ring grooves built for strength under high RPM and boost
• Q: Does the set include rings or pins?
  A: Includes 8 pistons .927 pins and spiro-locks rings sold separately for custom groove sizing
