SKU: 883-31-000

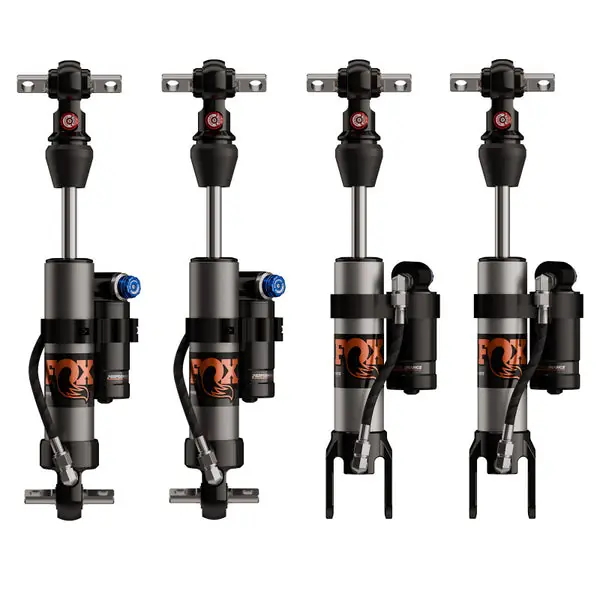

Fox 2.0 Performance Series Coilover Reservoir Shock Kit – 2014-2019 Chevrolet Corvette C7 (Incl. Z06, Grand Sport, ZR1) – Low-Speed Compression Adjustable
The Fox 2.0 Performance Series coilover kit with remote reservoirs transforms the C7 Corvette’s handling by replacing the factory MagneRide system with race-proven monotube dampers featuring external reservoirs, threaded body height adjustment, and 16-click low-speed compression tuning. This setup delivers sharper turn-in, reduced body roll, and improved traction on street or track while allowing a 1-2″ drop and precise damping control that maintains ride quality far beyond typical fixed-damping coilovers.
Key Features
- 2.0″ Monotube Dampers: Impact-extruded aluminum bodies with clear-anodized finish for heat dissipation.
- Remote Reservoirs: External reservoirs on all four corners increase oil volume and nitrogen capacity for fade-free performance.
- Low-Speed Compression Adjustable: 16-click LSC adjusters on reservoirs for fine-tuning curb weight and cornering response.
- Height Adjustable: Threaded spring perches provide 1-2″ drop range independent of preload.
- Spring Rates: Front 650 lb/in, Rear 800 lb/in Eibach springs with tender helpers.
- JM92 Advanced Suspension Fluid: High-viscosity index for consistent damping across temperature ranges.
- Rebuildable & Revalvable: Fully serviceable with Fox factory support.
- MagneRide Delete: Includes harness resistors to eliminate dash errors.
Product Notes
- Complete front and rear kit includes coilovers, reservoirs, springs, mounts, and MagneRide delete modules.
- Part number: 883-31-000 (LSC adjustable reservoir version).
- Fits all C7 variants: Stingray, Grand Sport, Z06, ZR1 (including models with factory leaf springs).
- Replaces factory transverse leaf springs with conventional coil springs.
- Approximate kit weight 68-72 lbs.
Installation Notes
- Bolt-on installation using factory mounting points.
- Professional alignment and corner balancing recommended.
- MagneRide delete resistors plug directly into factory harness – no coding required.
- Typical installation time 6-8 hours with lift.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2019 | Chevrolet | Corvette C7 | Stingray (All) |
| 2015-2019 | Chevrolet | Corvette C7 | Z06 |
| 2017-2019 | Chevrolet | Corvette C7 | Grand Sport |
| 2019 | Chevrolet | Corvette C7 | ZR1 |
Why Choose Fox?
- Over 45 years of off-road and performance suspension leadership.
- Performance Series proven on street cars, track cars, and factory Ford Performance programs.
- 2-year warranty with full rebuild service network.
Frequently Asked Questions
- Q: Does this delete MagneRide?
- A: Yes, mechanical dampers replace MagneRide, included resistors prevent error codes.
- Q: Can I keep the factory leaf springs?
- A: No, kit converts to conventional coil springs for better suited to adjustable damping.
- Q: Is high-speed compression adjustable?
- A: This model features low-speed compression only, rebound is fixed internally.
Shipping & Handling
- Method: Standard ground shipping (two oversized boxes).
- Package Weight: Approximately 80–85 lbs total.
- Box Dimensions (approx): Front 36″ × 18″ × 16″, Rear 32″ × 18″ × 16″.
