SKU: SC7160-4

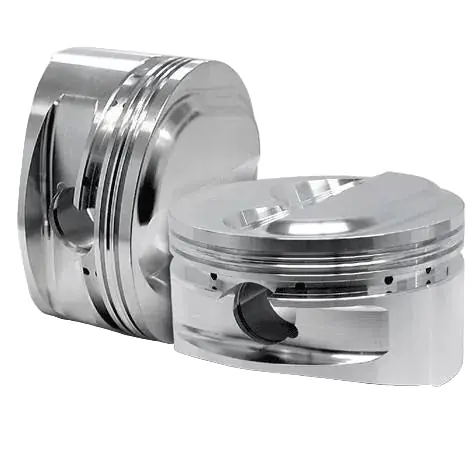

CP Piston & Ring Set for 2000-2009 Honda S2000 F20C/F22C – Bore 87mm STD – Comp Ratio F20C 11.0:1
CP SC7160-4 piston and ring set delivers forged performance for Honda S2000 engines with F20C or F22C. Machined to 87mm standard bore this kit supports high-revving builds with precise compression and durability. Includes rings and pins for complete assembly readiness in 2000-2009 S2000 models.
Key Features
- Forged 2618-T61 Alloy: High-strength material handles extreme heat and boost pressure in racing applications
- 87mm STD Bore: Exact factory dimension ensures drop-in fit without machining on stock blocks
- 11.0:1 Compression: Boosts F20C power output while maintaining safe detonation limits on pump gas
- Included Rings & Pins: Premium 1.0/1.2/2.8mm rings and 20×1.32mm 927 pins reduce setup time
- Accumulator Groove Design: Seals combustion pressure to minimize blow-by and extend ring life
Product Notes
- Compatible with stock or aftermarket connecting rods balance assembly after install
- Apply moly lubricant to skirts and pins during assembly for break-in
- Packaged in foam-lined box dimensions 12 x 8 x 6 inches
Installation Notes
- Professional installation recommended.
- Set ring end gaps to spec (top ring 0.0045 inch) and hone cylinders if worn
- Requires 140mm rod length for F20C 144.5mm for F22C compatibility
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2000-2009 | Honda | S2000 | Base |
| 2008-2009 | Honda | S2000 | CR |
Why Choose CP Pistons?
- Proven in NHRA and drag racing with thousands of race wins
- CNC-machined in USA for tolerances under 0.0003 inches
- Customizable options available for stroker or boosted setups
Frequently Asked Questions
- Q: Will SC7160-4 fit both F20C and F22C S2000 engines?
A: Yes 87mm bore works for both F20C uses 84mm stroke F22C uses 90.7mm stroke with matching comp height options - Q: What is the piston weight?
A: Each piston weighs 295 grams lightened full set 1.3 kg for balanced rotating mass - Q: Does it include warranty?
A: Backed by CP limited lifetime warranty on manufacturing defects with proper installation
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock – ships same or next business day
- Packaging: Foam-protected box 12x8x6 inches
- Weight: 4.5 lbs
