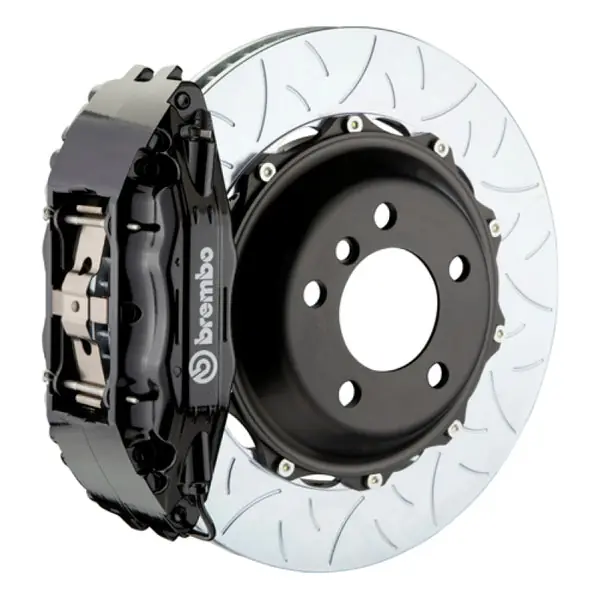

Brembo 92-99 S-Class (W140) Front GT BBK 4 Piston Cast 2pc 355×32 2pc Rotor Slotted Type-3-Black

SKU: 1B3.8012A1

Brembo 92-99 S-Class (W140) Front GT BBK 4 Piston Cast 2pc 355×32 2pc Rotor Slotted Type-3-Black

Equip your 1992-1999 Mercedes-Benz S-Class W140 with this Brembo GT front big brake kit featuring 4-piston cast monobloc calipers and 355x32mm 2-piece slotted rotors in Type-3 Black finish. The larger rotor diameter and multi-piston design deliver consistent braking force under high heat loads ideal for street and track use. This performance slotted brake kit bolts directly onto W140 chassis models including S320 S420 S500 and S600.

Key Features

• 4-Piston Cast Monobloc Calipers: Rigid design increases clamping force over stock single-piston calipers for shorter stopping distances and better pedal feel
• 355x32mm 2-Piece Slotted Rotors: Aluminum center hat reduces rotational mass by 3kg per corner while slots clear gases and debris for sustained performance
• Type-3 Black Coating: Electrophoretic paint process on calipers provides corrosion protection and heat resistance up to 200C with matching black rotor hats
• High-Performance Brake Pads: Included compound offers strong initial bite progressive fade resistance and low dust for daily driving
• Bolt-On Hardware Pack: Stainless steel lines brackets and pad retainers ensure complete installation without custom fabrication

Product Notes

• Wheel clearance minimum 18-inch diameter required due to 355mm rotor size
• Perform proper bedding-in process after install to transfer pad material evenly
• Kit weighs 48.5 lbs total packaged in one oversized box

Installation Notes

• Professional installation recommended.
• Uses OEM brake lines or upgrade to included stainless braided hoses
• Direct bolt-on fit no ABS or traction control modifications needed

This Part Fits

Year	Make	Model	Submodel
1992-1999	Mercedes-Benz	S-Class	S320
1992-1999	Mercedes-Benz	S-Class	S420
1992-1999	Mercedes-Benz	S-Class	S500
1992-1999	Mercedes-Benz	S-Class	S600

Why Choose Brembo?

• Supplies braking systems to Mercedes-AMG and Formula 1 teams
• Made in Italy with high-carbon rotors tested to 1000C fade threshold
• Exact OEM-match tolerances prevent vibration and uneven wear

Frequently Asked Questions

• Q: Will this kit fit all 1992-1999 W140 S-Class variants?
  A: Yes fits S320 S420 S500 S600 sedans with standard front suspension no chassis differences affect compatibility
• Q: What materials are used in rotors and calipers?
  A: Rotors feature high-carbon cast iron friction rings with 6082 aluminum hats calipers are cast iron with Type-3 hard anodized coating
• Q: What warranty coverage applies?
  A: Brembo provides 24-month limited warranty on defects in materials and workmanship from purchase date

Shipping & Handling

• Method: UPS Ground
• Availability: In stock – ships same or next business day
• Packaging: Single reinforced box 19 x 19 x 12 inches
• Weight: 48.5 lbs
