Brembo 92-99 S-Class (W140) Front GT BBK 4 Piston Cast 2pc 355×32 2pc Rotor Slotted Type-1-Red

SKU: 1B2.8012A2

Brembo 92-99 S-Class (W140) Front GT BBK 4 Piston Cast 2pc 355×32 2pc Rotor Slotted Type-1-Red

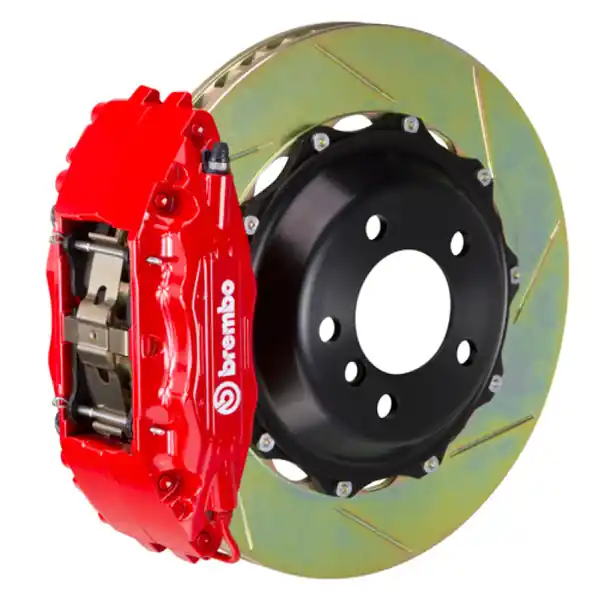

This Brembo GT front big brake kit upgrades 1992-1999 Mercedes-Benz S-Class W140 sedans with 4-piston cast calipers and 355x32mm two-piece slotted rotors for precise control and consistent braking under high heat. The kit reduces stopping distances improves pedal feel and handles track demands while fitting under 19-inch wheels. Complete with pads and hardware it bolts on for immediate performance gains.

Key Features

• 4-Piston Cast Calipers: Fixed position design applies even pressure across pads for stronger initial bite and progressive modulation during hard stops.
• 355x32mm 2-Piece Slotted Rotors: Aluminum hat and curved vanes shed heat fast slots wipe gases for clean pad contact and lightweight build cuts unsprung mass by 3kg per corner.
• Type-1 Red Powder Coat: High-temperature finish protects against road salt and brake dust while showcasing race-inspired style behind wheels.
• Performance Brake Pads: Included high-friction compound offers street comfort with track durability low dust and noise for daily driving.
• Bolt-On Hardware: All brackets lines and fittings included match OEM mounting points for direct replacement without modifications.

Product Notes

• Requires 19-inch or larger wheels for clearance.
• Compatible with factory ABS and parking brake systems.
• Boxed for protection arrives ready to install.

Installation Notes

• Professional installation recommended.
• Bleed brake system after install and bed-in rotors per Brembo instructions.
• Uses factory bolt pattern and brake lines no adapters needed.

This Part Fits

Year	Make	Model	Submodel
1994-1999	Mercedes-Benz	S320	W140 Sedan
1993-1998	Mercedes-Benz	S420	W140 Sedan
1992-1999	Mercedes-Benz	S500	W140 Sedan
1993-1999	Mercedes-Benz	S600	W140 Sedan

Why Choose Brembo?

• Leads motorsport braking with F1 and GT racing wins.
• CNC-machined from premium alloys for zero defects.
• Engineered in Italy for exact OEM fit and peak thermal capacity.

Frequently Asked Questions

• Q: Does this kit fit all 92-99 S-Class W140 models?
  A: Yes it fits S320 S420 S500 and S600 sedans with 19-inch wheels confirm submodel via VIN for exact match.
• Q: What material are the calipers and rotors?
  A: Calipers are cast aluminum with red powder coat rotors feature stainless steel slotted faces on aluminum hats.
• Q: What warranty and install support is provided?
  A: 24-month manufacturer warranty includes pads detailed instructions and tech support available.
