SKU: ACC-T2406SD

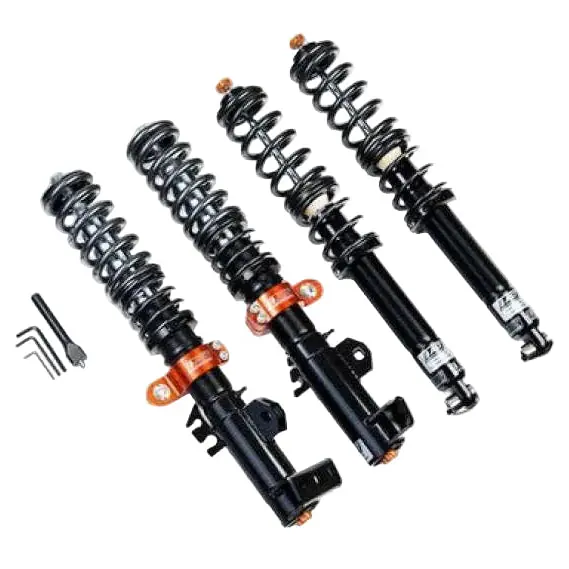

AST 2023+ Toyota Corolla GR (GZEA14) 5100 Competition Coilover Kit
The AST 5100 Competition Coilover Kit delivers track-ready suspension for 2023-2025 Toyota GR Corolla models including Core, Premium, Circuit Edition and Morizo Edition. Front and rear coilover dampers include springs and top mounts for precise ride height and rebound control. Monotube design ensures responsive handling whether pushing limits on circuit or driving daily roads.
Key Features
- 12-Click Rebound Adjustment: Control damper extension with 12 positions for tailored balance between track grip and road comfort, each click changes feedback for distinct drive feel.
- Monotube Design: Large piston provides responsive valving without aeration or foaming, high-pressure operation boosts performance across conditions.
- Full Coilover Setup: Front inverted and rear coilovers allow height changes plus damping tweaks, springs included for immediate setup from AST testing data.
- Camber-Adjustable Front Top Mounts: Aluminum plates enable wheel geometry changes to enhance front-end grip and cornering precision.
- Rebuildable Dampers: Service at certified AST centers keeps performance fresh long-term with custom spring rate options available.
Product Notes
- Spring preload and rates set from track development, user-adjustable for personal tuning.
- Solid rear top mounts ensure direct response without play.
- Handles combined track days and street use with consistent damping.
Installation Notes
- Professional installation recommended.
- Perform full alignment after setup to match camber adjustments.
- Uses factory mounting hardware, no additional parts required.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2023-2025 | Toyota | GR Corolla | Circuit Edition |
| 2023-2025 | Toyota | GR Corolla | Core |
| 2023 | Toyota | GR Corolla | Morizo Edition |
| 2024-2025 | Toyota | GR Corolla | Premium |
Why Choose AST?
- Track-proven in motorsport with focus on adjustable control.
- Monotube construction for reliable damping under heat.
- Engineered for rebuilds and tuning to match driver needs.
Frequently Asked Questions
- Q: Will this fit my 2024 GR Corolla Premium?
A: Yes, direct fit for 2023-2025 GR Corolla Premium, Core, Circuit Edition and 2023 Morizo Edition, GZEA14 chassis confirmed. - Q: What damper materials are used?
A: High-pressure steel monotube bodies with aluminum top mounts front, solid steel rear mounts for durability. - Q: How do I service these coilovers?
A: Fully rebuildable at AST service centers worldwide, supports spring rate swaps and full refreshes.
Shipping & Handling
- Method: UPS or FedEx Ground
- Availability: In stock – ships same or next business day
- Packaging: One reinforced box, 42 x 18 x 14 inches
- Weight: 58 lbs
